$15.5-22.8 /Square Meter
| Payment Type: | T/T |
| Incoterm: | FOB,CFR,CIF,EXW,CPT,FCA |
| Min. Order: | 10 Square Meter |
Share:
Warranty Service: 3 Years
Load Capacity: Type 1a – 300 Lbs
After-sales Service: Online Technical Support
Engineering Solution Capability: 3d Model Design, Total Solution For Projects
Application Scenario: Apartment, Office Building, Workshop
Design Style: Traditional, Modern
Place Of Origin: China
Material: Stainless Steel, Aluminum, Steel
Characteristic: Insulation Ladders, Folding Ladders
Variety: Industrial Ladders
Structure: Combination Ladders, Extension Ladders, Multi-Position Ladders
| Selling Units | : | Square Meter |
The file is encrypted. Please fill in the following information to continue accessing it

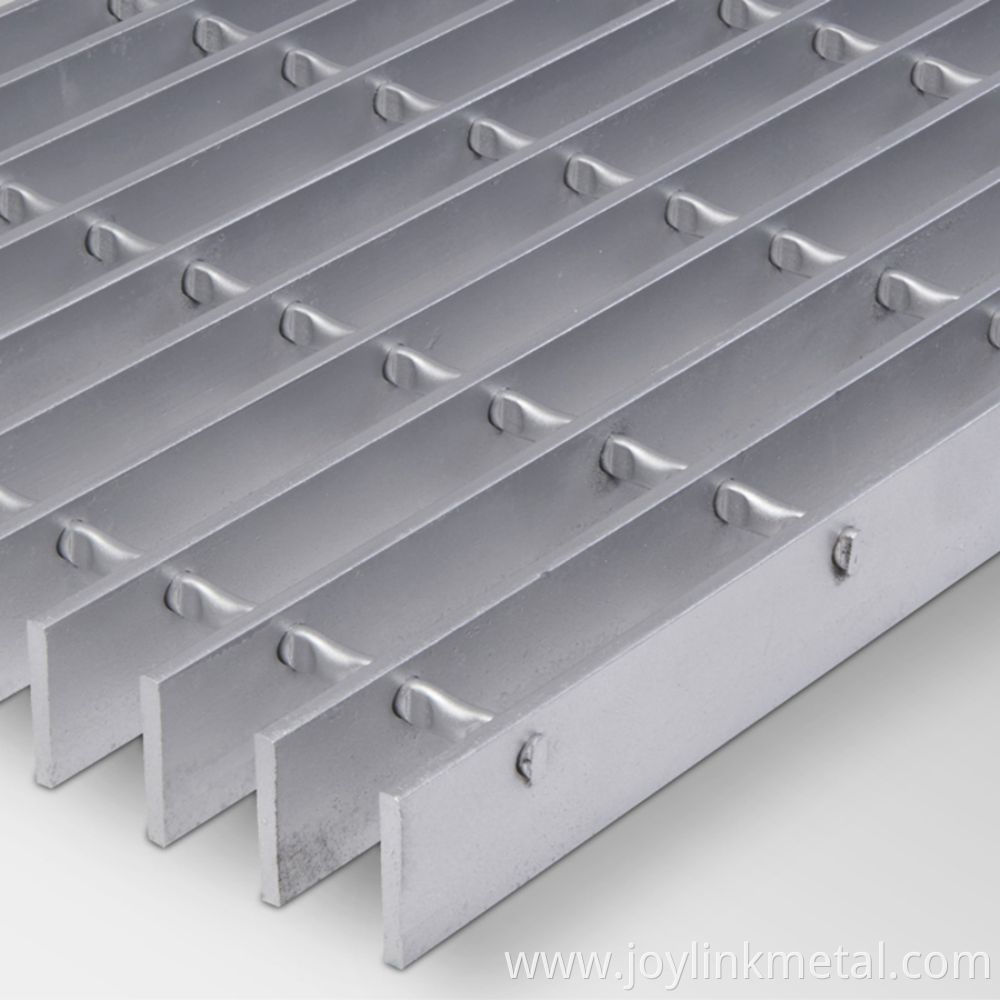

Most typical Steel Grating is a welded assembly of cross bars attached to bearing bars at 90 degrees. Metal grating provides a lightweight and strong open grid steel panel that permits the passage of light, heat, and liquid, making it ideal for industrial applications, where drainage, visibility, and ventilation are critical.
Range of steel bar grating includes standard, heavy duty, and stair treads.
Bearing Bars - Load carrying, span of grating
Cross Bars - Connecting bars, runs along width of grating
Finish - Coating applied-painted black, galvanized
Serrated - Notching process for non-slip surface
Widths - Overall dimension measured perpendicular to bearing bars
Span - Distance running along direction of bearing bars
Banding - Bar of the same size as bearing bar used to close open ends
Kick Plate - Flat bar welded to outer edge with projection above grating
Bar Grating Materials And Finishes
Bar Grating
Untreated carbon steel grating, also known as bar grating, is a highly popular choice for areas where corrosion resistance is not a critical factor. Available in a variety of spacing, bar grating offers lightweight strength and versatility.

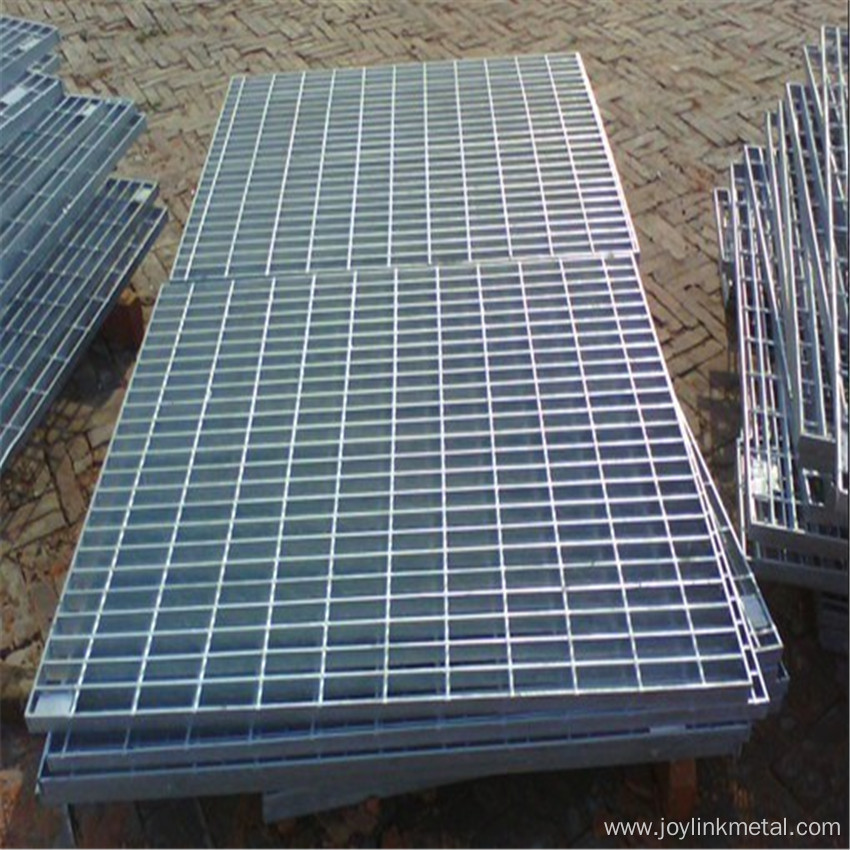

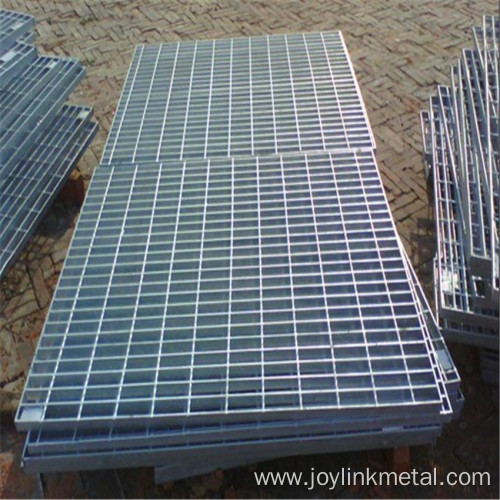

Galvanized steel grating or painted grating is recommended in high traffic areas or locations susceptible to excessive wear, rust and other types of environmental corrosion. Galvanization is a process where bar grating stock is dipped in molten zinc, providing a tough and corrosion resistant finish. Wear-resistant painted finishes are also available in a wide array of colors.
Serrated Carbon Steel Bar Grating

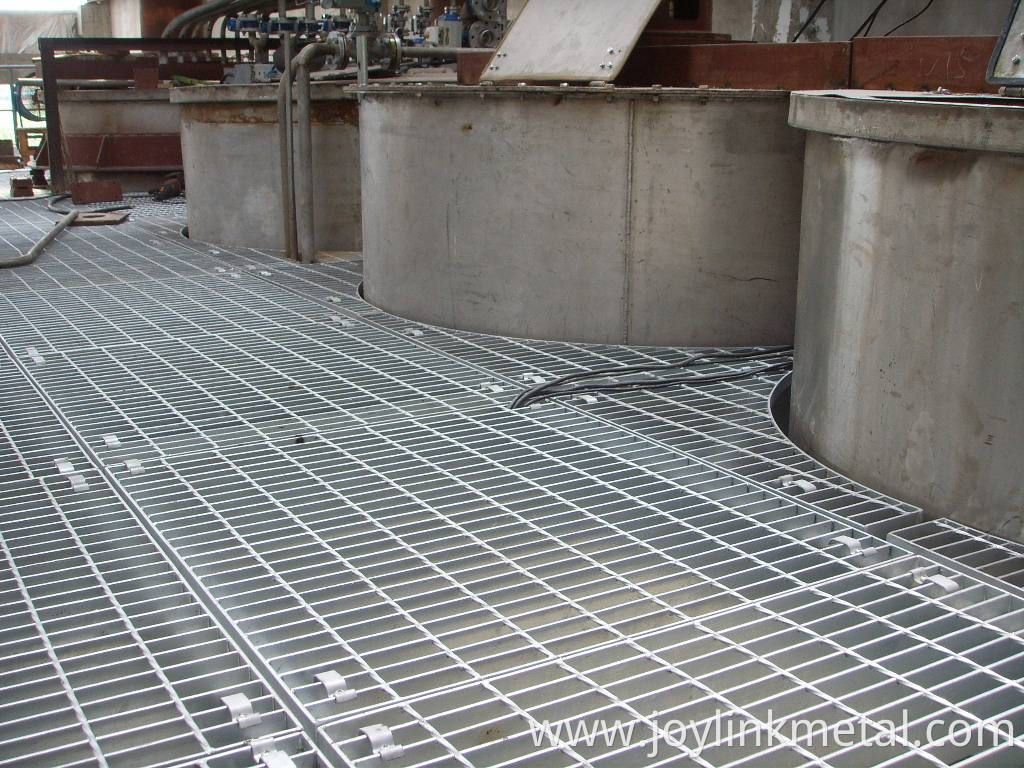

Serrated carbon steel bar grating is designed for anti-slip protection. Processed with a serrated top edge, serrated carbon steel bar grating is a very popular option for areas where slip protection is critical. Galvanized serrated grating products are used for flooring, catwalks, mezzanines, decking, stair treads, fencing, ramps, docks, trench covers, drainage pit covers, maintenance platforms, wash racks, ventilation screens, storage racks, window and machinery safeguards, factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment and in heavy equipment areas.
Aluminum Grating
Aluminum grating products are highly prized for their strength, lightweight performance, and corrosion resistance. Metals USA has a wide selection of aluminum grating sizes and spacings available for your ongoing projects.
